Test MOREDETOUR0250

…

PPC MOREDETOUR0250
"DpDatadW Rfe DetourR DpCtrldW DetourWW Rfe"
Cycle=Rfe DetourR DpCtrldW DetourWW Rfe DpDatadW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Rf
Orig=DpDatadW Rfe DetourR DpCtrldW DetourWW Rfe
{
0:r2=x; 0:r4=y;
1:r2=y; 1:r5=x;
2:r2=y;
3:r2=x;
}
 P0           | P1           | P2           | P3           ;
 lwz r1,0(r2) | lwz r1,0(r2) | li r1,2      | lwz r1,0(r2) ;
 xor r3,r1,r1 | lwz r3,0(r2) | stw r1,0(r2) | li r3,2      ;
 addi r3,r3,1 | cmpw r3,r3   |              | stw r3,0(r2) ;
 stw r3,0(r4) | beq  LC00    |              |              ;
              | LC00:        |              |              ;
              | li r4,1      |              |              ;
              | stw r4,0(r5) |              |              ;
              | li r6,3      |              |              ;
              | stw r6,0(r5) |              |              ;
Observed
    0:r1=2; 1:r1=0; 1:r3=1; 3:r1=0; x=2;
and 0:r1=1; 1:r1=0; 1:r3=2; 3:r1=0; x=2;

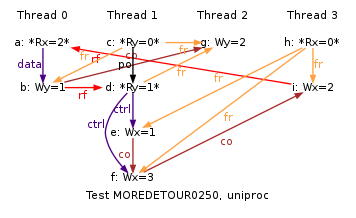

and 0:r1=0; 1:r1=2; 1:r3=1; 3:r1=1; x=2;
and 0:r1=0; 1:r1=0; 1:r3=2; 3:r1=1; x=2;
and 0:r1=2; 1:r1=0; 1:r3=2; 3:r1=1; x=2;

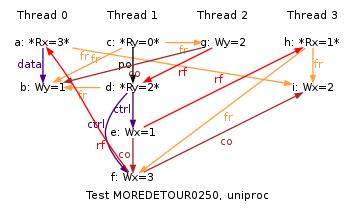

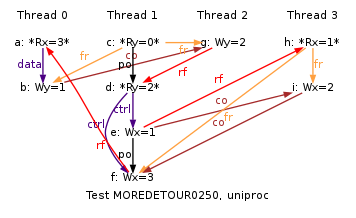

and 0:r1=3; 1:r1=0; 1:r3=2; 3:r1=1; x=2;
and 0:r1=0; 1:r1=1; 1:r3=2; 3:r1=1; x=2;

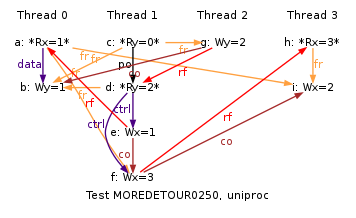

and 0:r1=1; 1:r1=0; 1:r3=2; 3:r1=3; x=2;
and 0:r1=0; 1:r1=2; 1:r3=1; 3:r1=1; x=3;
and 0:r1=0; 1:r1=0; 1:r3=2; 3:r1=1; x=3;
and 0:r1=1; 1:r1=0; 1:r3=2; 3:r1=1; x=3;
and 0:r1=2; 1:r1=0; 1:r3=2; 3:r1=1; x=3;
and 0:r1=3; 1:r1=0; 1:r3=2; 3:r1=1; x=3;
and 0:r1=0; 1:r1=1; 1:r3=2; 3:r1=1; x=3;
