Test MOREDETOUR0689

…

ARM MOREDETOUR0689
"DetourW DpCtrldR DetourRW Wse DMBdWR Fre"
Cycle=Fre DetourW DpCtrldR DetourRW Wse DMBdWR
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Ws Fr
Orig=DetourW DpCtrldR DetourRW Wse DMBdWR Fre
{
%x0=x; %y0=y;
%x1=x;
%y2=y;
%y3=y; %x3=x;
}
 P0           | P1           | P2           | P3           ;
 MOV R0,#1    | MOV R0,#2    | MOV R0,#1    | MOV R0,#3    ;
 STR R0,[%x0] | STR R0,[%x1] | STR R0,[%y2] | STR R0,[%y3] ;
 LDR R1,[%x0] |              | DMB          | DMB          ;
 CMP R1,R1    |              | LDR R1,[%y2] | LDR R1,[%x3] ;
 BNE LC00     |              |              |              ;
 LC00:        |              |              |              ;
 LDR R2,[%y0] |              |              |              ;
 MOV R3,#2    |              |              |              ;
 STR R3,[%y0] |              |              |              ;

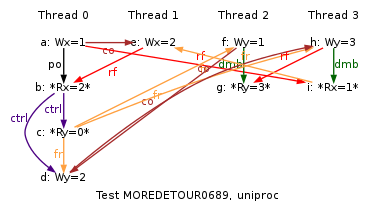

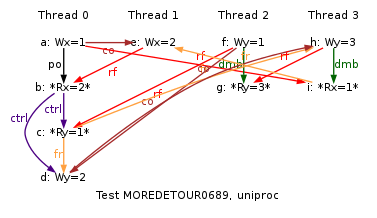

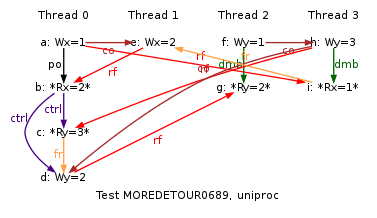

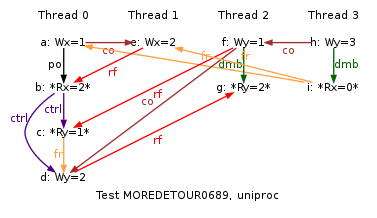

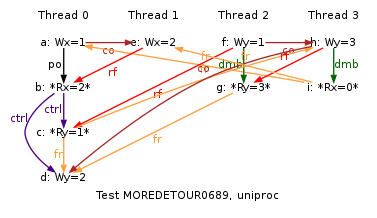

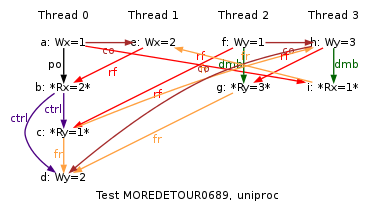

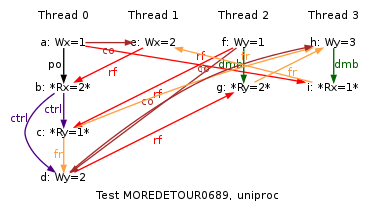

Observed
    0:R1=2; 0:R2=0; 2:R1=1; 3:R1=0; y=1;
and 0:R1=2; 0:R2=0; 2:R1=1; 3:R1=1; y=1;
and 0:R1=2; 0:R2=0; 2:R1=1; 3:R1=0; y=2;
and 0:R1=2; 0:R2=0; 2:R1=2; 3:R1=0; y=2;
and 0:R1=2; 0:R2=1; 2:R1=2; 3:R1=0; y=2;
and 0:R1=2; 0:R2=0; 2:R1=3; 3:R1=0; y=2;
and 0:R1=2; 0:R2=1; 2:R1=3; 3:R1=0; y=2;
and 0:R1=2; 0:R2=0; 2:R1=1; 3:R1=1; y=2;
and 0:R1=2; 0:R2=0; 2:R1=2; 3:R1=1; y=2;
and 0:R1=2; 0:R2=1; 2:R1=2; 3:R1=1; y=2;
and 0:R1=2; 0:R2=3; 2:R1=2; 3:R1=1; y=2;
and 0:R1=2; 0:R2=0; 2:R1=3; 3:R1=1; y=2;
and 0:R1=2; 0:R2=1; 2:R1=3; 3:R1=1; y=2;
and 0:R1=2; 0:R2=0; 2:R1=1; 3:R1=0; y=3;
and 0:R1=2; 0:R2=1; 2:R1=1; 3:R1=0; y=3;
and 0:R1=2; 0:R2=0; 2:R1=2; 3:R1=0; y=3;
and 0:R1=2; 0:R2=1; 2:R1=2; 3:R1=0; y=3;
and 0:R1=2; 0:R2=0; 2:R1=3; 3:R1=0; y=3;
and 0:R1=2; 0:R2=1; 2:R1=3; 3:R1=0; y=3;
and 0:R1=2; 0:R2=0; 2:R1=1; 3:R1=1; y=3;
and 0:R1=2; 0:R2=1; 2:R1=1; 3:R1=1; y=3;
and 0:R1=2; 0:R2=0; 2:R1=2; 3:R1=1; y=3;
and 0:R1=2; 0:R2=1; 2:R1=2; 3:R1=1; y=3;
and 0:R1=2; 0:R2=0; 2:R1=3; 3:R1=1; y=3;
and 0:R1=2; 0:R2=1; 2:R1=3; 3:R1=1; y=3;
