Test MOREDETOUR0708

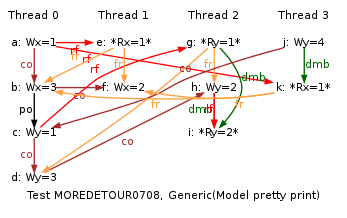

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=2 ; y=2"

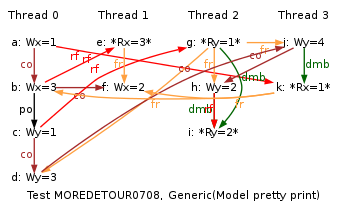

Executions for behaviour: "1:R0=3 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=2 ; y=2"

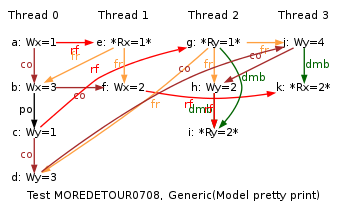

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=2 ; x=2 ; y=2"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=3 ; x=2 ; y=2"

Executions for behaviour: "1:R0=0 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=3 ; y=2"

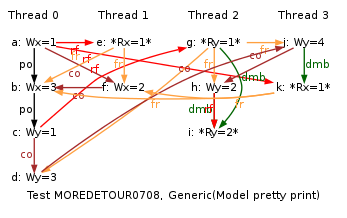

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=3 ; y=2"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=2 ; x=3 ; y=2"

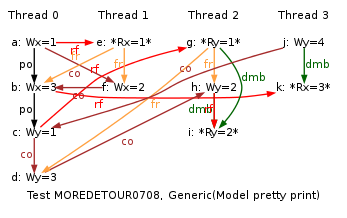

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=3 ; x=3 ; y=2"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=0 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=1 ; x=2 ; y=3"

Executions for behaviour: "1:R0=3 ; 2:R0=1 ; 2:R2=3 ; 3:R1=1 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=2 ; x=2 ; y=3"

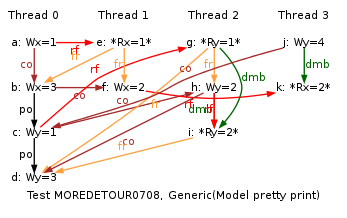

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=2 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=2 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=4 ; 3:R1=2 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=3 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=3 ; x=2 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=0 ; x=3 ; y=3"

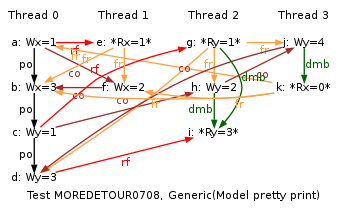

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=0 ; x=3 ; y=3"

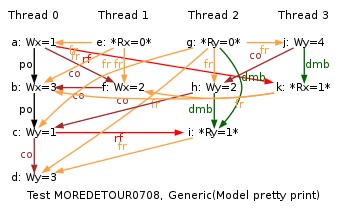

Executions for behaviour: "1:R0=0 ; 2:R0=0 ; 2:R2=1 ; 3:R1=1 ; x=3 ; y=3"

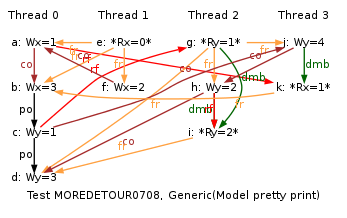

Executions for behaviour: "1:R0=0 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=3 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=1 ; x=3 ; y=3"

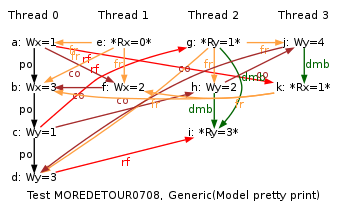

Executions for behaviour: "1:R0=0 ; 2:R0=1 ; 2:R2=3 ; 3:R1=1 ; x=3 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=1 ; x=3 ; y=3"

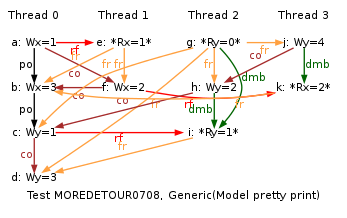

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=2 ; x=3 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=2 ; x=3 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=2 ; x=3 ; y=3"

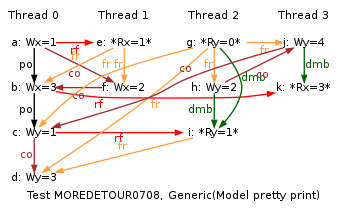

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=3 ; x=3 ; y=3"

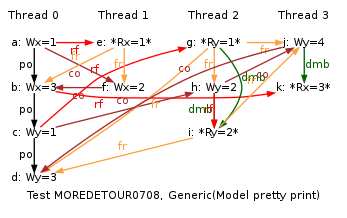

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=2 ; 3:R1=3 ; x=3 ; y=3"

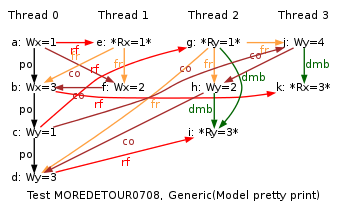

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=3 ; x=3 ; y=3"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=4 ; 3:R1=3 ; x=3 ; y=3"

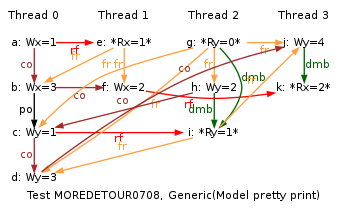

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=2 ; x=2 ; y=4"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=2 ; x=2 ; y=4"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=4 ; 3:R1=2 ; x=2 ; y=4"

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=3 ; x=2 ; y=4"

Executions for behaviour: "1:R0=1 ; 2:R0=0 ; 2:R2=1 ; 3:R1=3 ; x=3 ; y=4"

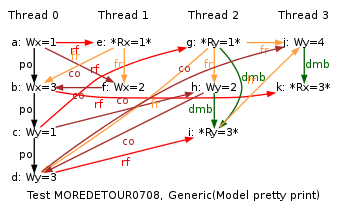

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=3 ; 3:R1=3 ; x=3 ; y=4"

Executions for behaviour: "1:R0=1 ; 2:R0=1 ; 2:R2=4 ; 3:R1=3 ; x=3 ; y=4"

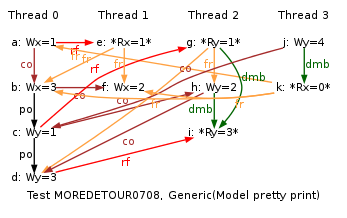

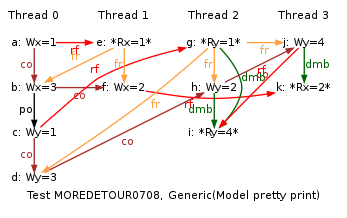

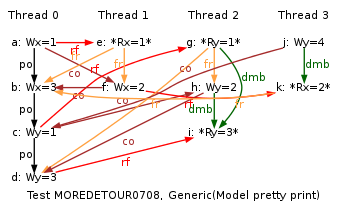

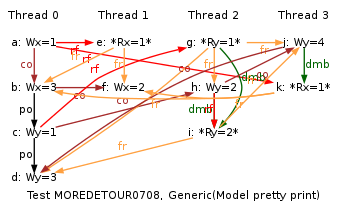

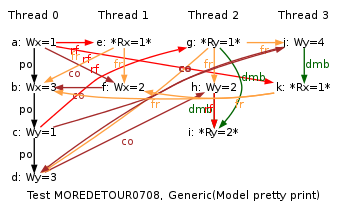

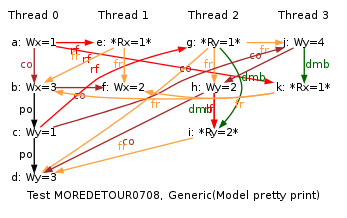

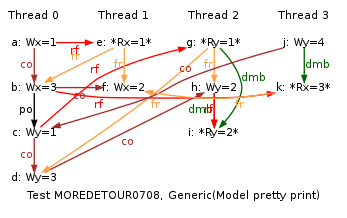

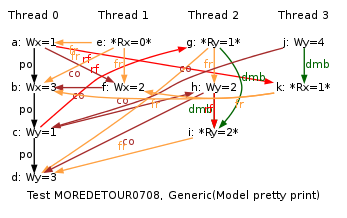

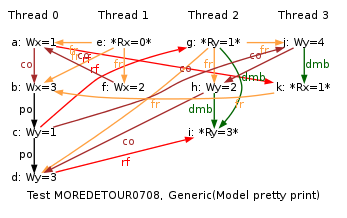

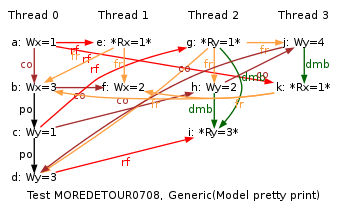

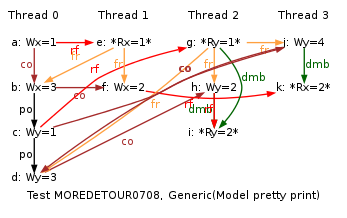

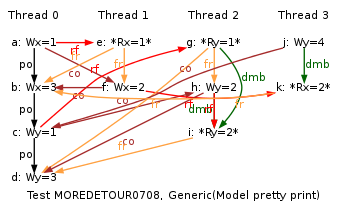

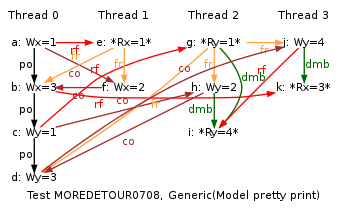

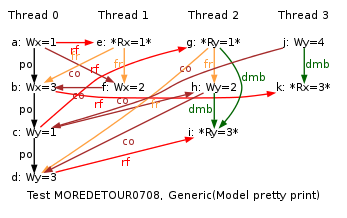

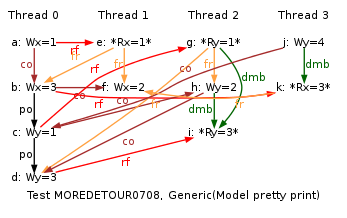

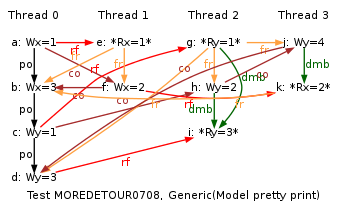

ARM MOREDETOUR0708
"DetourWW PodWW DetourWW Wse DMBdWR Fre"
Cycle=Fre DetourWW PodWW DetourWW Wse DMBdWR
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Ws Fr
Orig=DetourWW PodWW DetourWW Wse DMBdWR Fre
{
%x0=x; %y0=y;
%x1=x;
%y2=y;
%y3=y; %x3=x;
}
 P0           | P1           | P2           | P3           ;
 MOV R0,#1    | LDR R0,[%x1] | LDR R0,[%y2] | MOV R0,#4    ;
 STR R0,[%x0] | MOV R1,#2    | MOV R1,#2    | STR R0,[%y3] ;
 MOV R1,#3    | STR R1,[%x1] | STR R1,[%y2] | DMB          ;
 STR R1,[%x0] |              | DMB          | LDR R1,[%x3] ;
 MOV R2,#1    |              | LDR R2,[%y2] |              ;
 STR R2,[%y0] |              |              |              ;
 MOV R3,#3    |              |              |              ;
 STR R3,[%y0] |              |              |              ;
Observed
    1:R0=1; 2:R0=1; 2:R2=2; 3:R1=1; x=2; y=2;
and 1:R0=3; 2:R0=1; 2:R2=2; 3:R1=1; x=2; y=2;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=2; x=2; y=2;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=3; x=2; y=2;
and 1:R0=0; 2:R0=1; 2:R2=2; 3:R1=1; x=3; y=2;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=1; x=3; y=2;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=2; x=3; y=2;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=3; x=3; y=2;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=0; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=1; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=1; x=2; y=3;
and 1:R0=3; 2:R0=1; 2:R2=3; 3:R1=1; x=2; y=3;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=2; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=2; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=2; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=4; 3:R1=2; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=3; x=2; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=3; x=2; y=3;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=0; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=0; x=3; y=3;
and 1:R0=0; 2:R0=0; 2:R2=1; 3:R1=1; x=3; y=3;
and 1:R0=0; 2:R0=1; 2:R2=2; 3:R1=1; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=1; x=3; y=3;
and 1:R0=0; 2:R0=1; 2:R2=3; 3:R1=1; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=1; x=3; y=3;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=2; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=2; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=2; x=3; y=3;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=3; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=2; 3:R1=3; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=3; x=3; y=3;
and 1:R0=1; 2:R0=1; 2:R2=4; 3:R1=3; x=3; y=3;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=2; x=2; y=4;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=2; x=2; y=4;
and 1:R0=1; 2:R0=1; 2:R2=4; 3:R1=2; x=2; y=4;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=3; x=2; y=4;
and 1:R0=1; 2:R0=0; 2:R2=1; 3:R1=3; x=3; y=4;
and 1:R0=1; 2:R0=1; 2:R2=3; 3:R1=3; x=3; y=4;
and 1:R0=1; 2:R0=1; 2:R2=4; 3:R1=3; x=3; y=4;
