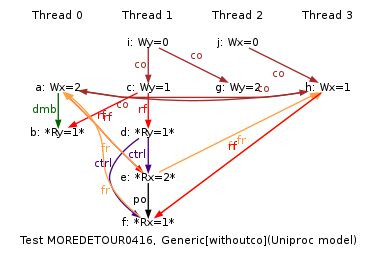

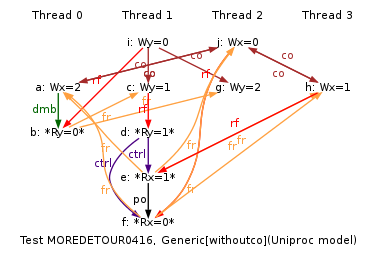

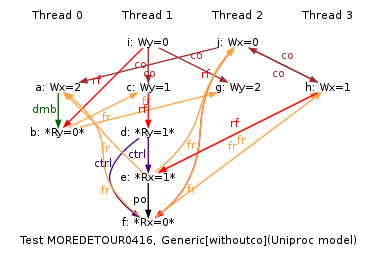

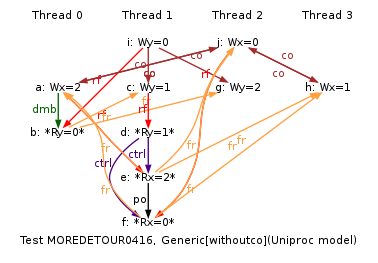

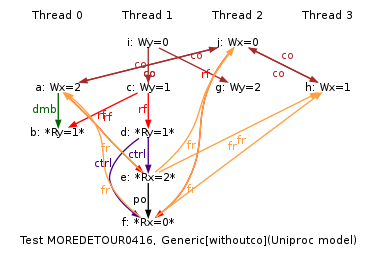

Test MOREDETOUR0416

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=1"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=1 ; 1:R3=2 ; x=1"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=1 ; 1:R3=2 ; x=1"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=1 ; 1:R3=2 ; x=1"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=1 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=2 ; 1:R3=0 ; x=2"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R2=2 ; 1:R3=1 ; x=2"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R2=2 ; 1:R3=1 ; x=2"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; 1:R2=2 ; 1:R3=1 ; x=2"

ARM MOREDETOUR0416
"DMBdWR Fre DetourW DpCtrldR DetourR Fre"
Cycle=Fre DetourW DpCtrldR DetourR Fre DMBdWR
Prefetch=0:x=F,0:y=T,1:y=F,1:x=T
Com=Fr Fr
Orig=DMBdWR Fre DetourW DpCtrldR DetourR Fre
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%y2=y;
%x3=x;
}
 P0           | P1           | P2           | P3           ;
 MOV R0,#2    | MOV R0,#1    | MOV R0,#2    | MOV R0,#1    ;
 STR R0,[%x0] | STR R0,[%y1] | STR R0,[%y2] | STR R0,[%x3] ;
 DMB          | LDR R1,[%y1] |              |              ;
 LDR R1,[%y0] | CMP R1,R1    |              |              ;
              | BNE LC00     |              |              ;
              | LC00:        |              |              ;
              | LDR R2,[%x1] |              |              ;
              | LDR R3,[%x1] |              |              ;
Observed
    0:R1=0; 1:R1=1; 1:R2=1; 1:R3=0; x=1;
and 0:R1=1; 1:R1=1; 1:R2=1; 1:R3=0; x=1;
and 0:R1=2; 1:R1=1; 1:R2=1; 1:R3=0; x=1;
and 0:R1=0; 1:R1=1; 1:R2=2; 1:R3=0; x=1;
and 0:R1=1; 1:R1=1; 1:R2=2; 1:R3=0; x=1;
and 0:R1=2; 1:R1=1; 1:R2=2; 1:R3=0; x=1;
and 0:R1=0; 1:R1=1; 1:R2=1; 1:R3=2; x=1;
and 0:R1=1; 1:R1=1; 1:R2=1; 1:R3=2; x=1;
and 0:R1=2; 1:R1=1; 1:R2=1; 1:R3=2; x=1;
and 0:R1=0; 1:R1=1; 1:R2=1; 1:R3=0; x=2;
and 0:R1=1; 1:R1=1; 1:R2=1; 1:R3=0; x=2;
and 0:R1=2; 1:R1=1; 1:R2=1; 1:R3=0; x=2;
and 0:R1=0; 1:R1=1; 1:R2=2; 1:R3=0; x=2;
and 0:R1=1; 1:R1=1; 1:R2=2; 1:R3=0; x=2;
and 0:R1=2; 1:R1=1; 1:R2=2; 1:R3=0; x=2;
and 0:R1=0; 1:R1=1; 1:R2=2; 1:R3=1; x=2;
and 0:R1=1; 1:R1=1; 1:R2=2; 1:R3=1; x=2;
and 0:R1=2; 1:R1=1; 1:R2=2; 1:R3=1; x=2;
