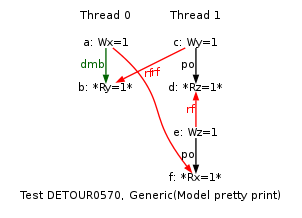

Test DETOUR0570

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; 1:R3=1"

Executions for behaviour: "0:R1=1 ; 1:R1=1 ; 1:R3=1"

ARM DETOUR0570
"DMBdWR Fre PodWR Fri PodWR Fre"
Cycle=Fri PodWR Fre DMBdWR Fre PodWR
Prefetch=0:x=F,0:y=T,1:y=F,1:x=T
Com=Fr Fr
Orig=DMBdWR Fre PodWR Fri PodWR Fre
{
%x0=x; %y0=y;
%y1=y; %z1=z; %x1=x;
}
 P0           | P1           ;
 MOV R0,#1    | MOV R0,#1    ;
 STR R0,[%x0] | STR R0,[%y1] ;
 DMB          | LDR R1,[%z1] ;
 LDR R1,[%y0] | MOV R2,#1    ;
              | STR R2,[%z1] ;
              | LDR R3,[%x1] ;
Observed
    0:R1=0; 1:R1=1; 1:R3=1;
and 0:R1=1; 1:R1=1; 1:R3=1;
