Test MOREDETOUR0740

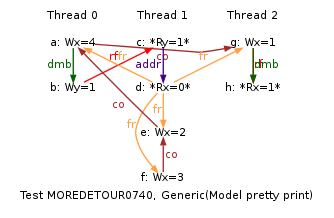

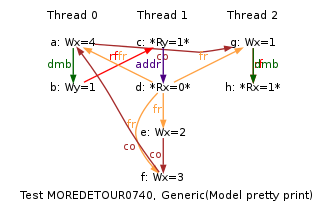

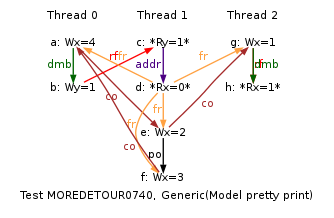

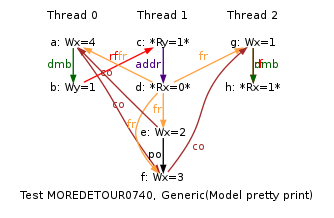

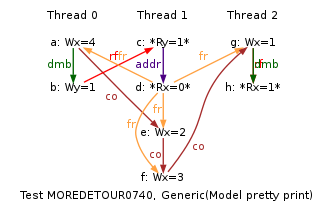

Executions for behaviour: "1:R0=1 ; 1:R2=0 ; 2:R1=1 ; x=1"

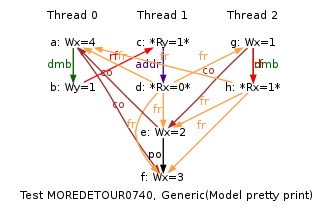

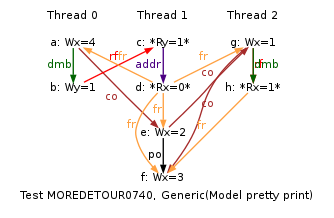

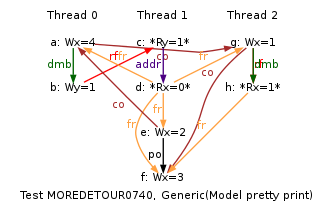

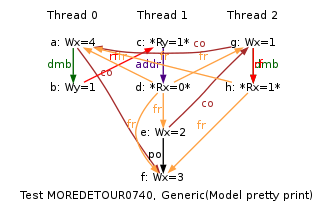

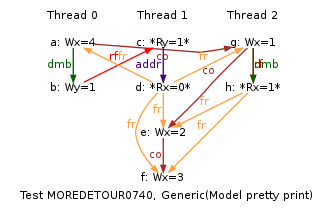

Executions for behaviour: "1:R0=1 ; 1:R2=0 ; 2:R1=1 ; x=3"

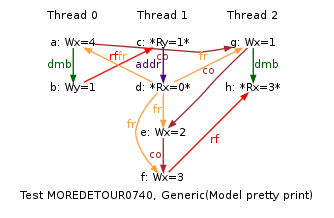

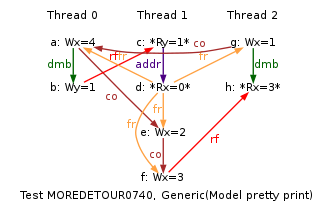

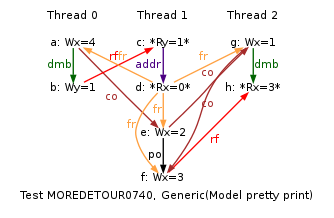

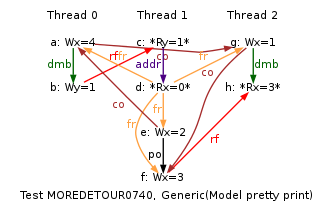

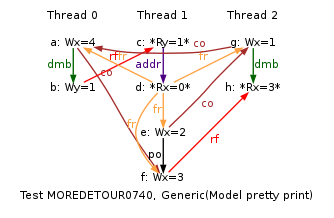

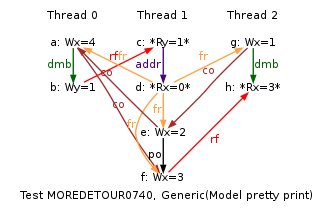

Executions for behaviour: "1:R0=1 ; 1:R2=0 ; 2:R1=3 ; x=3"

ARM MOREDETOUR0740
"DMBdWW Rfe DpAddrdR DetourRW PosWW Wse"
Cycle=Rfe DpAddrdR DetourRW PosWW Wse DMBdWW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Ws
Orig=DMBdWW Rfe DpAddrdR DetourRW PosWW Wse
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%x2=x;
}
 P0           | P1              | P2           ;
 MOV R0,#4    | LDR R0,[%y1]    | MOV R0,#1    ;
 STR R0,[%x0] | EOR R1,R0,R0    | STR R0,[%x2] ;
 DMB          | LDR R2,[R1,%x1] | DMB          ;
 MOV R1,#1    | MOV R3,#2       | LDR R1,[%x2] ;
 STR R1,[%y0] | STR R3,[%x1]    |              ;
              | MOV R4,#3       |              ;
              | STR R4,[%x1]    |              ;
Observed
    1:R0=1; 1:R2=0; 2:R1=1; x=1;
and 1:R0=1; 1:R2=0; 2:R1=1; x=3;
and 1:R0=1; 1:R2=0; 2:R1=3; x=3;
