Test MOREDETOUR0068

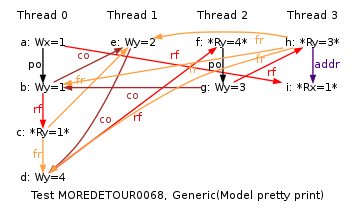

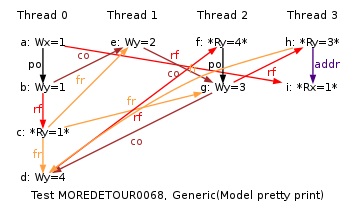

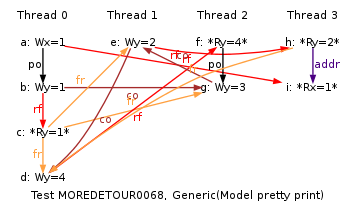

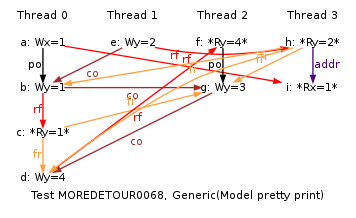

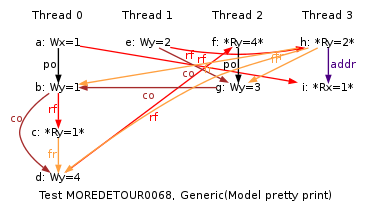

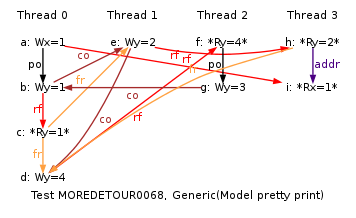

Executions for behaviour: "0:R2=1 ; 2:R0=4 ; 3:R0=2 ; 3:R2=1 ; y=4"

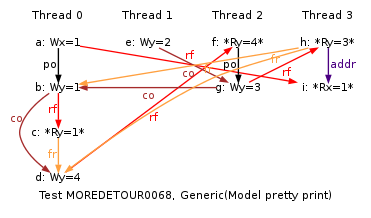

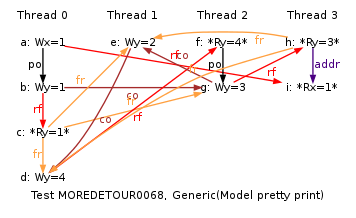

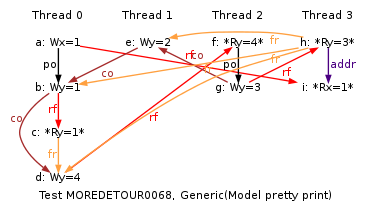

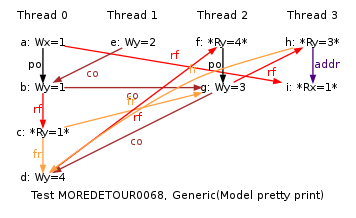

Executions for behaviour: "0:R2=1 ; 2:R0=4 ; 3:R0=3 ; 3:R2=1 ; y=4"

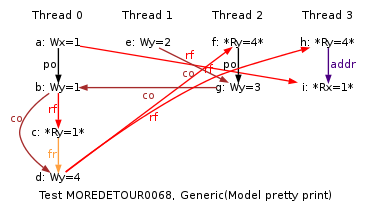

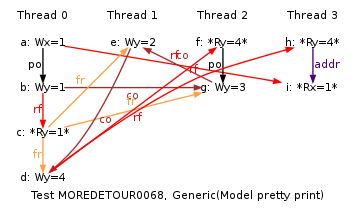

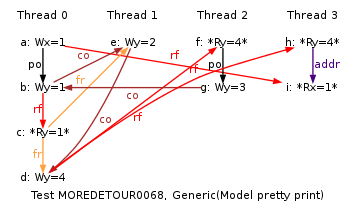

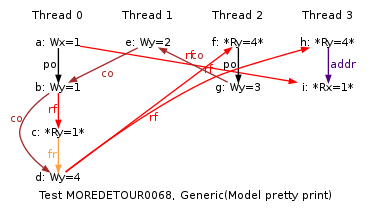

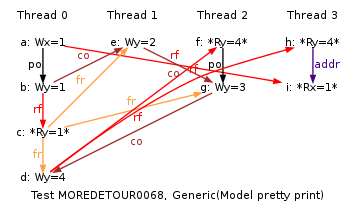

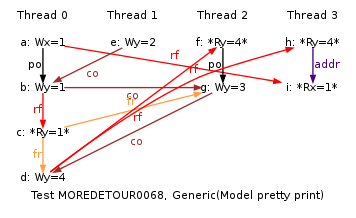

Executions for behaviour: "0:R2=1 ; 2:R0=4 ; 3:R0=4 ; 3:R2=1 ; y=4"

ARM MOREDETOUR0068
"PodWW DetourW DetourRW Rfe DpAddrdR Fre"
Cycle=Rfe DpAddrdR Fre PodWW DetourW DetourRW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Rf Fr
Orig=PodWW DetourW DetourRW Rfe DpAddrdR Fre
{
%x0=x; %y0=y;
%y1=y;
%y2=y;
%y3=y; %x3=x;
}
 P0           | P1           | P2           | P3              ;
 MOV R0,#1    | MOV R0,#2    | LDR R0,[%y2] | LDR R0,[%y3]    ;
 STR R0,[%x0] | STR R0,[%y1] | MOV R1,#3    | EOR R1,R0,R0    ;
 MOV R1,#1    |              | STR R1,[%y2] | LDR R2,[R1,%x3] ;
 STR R1,[%y0] |              |              |                 ;
 LDR R2,[%y0] |              |              |                 ;
 MOV R3,#4    |              |              |                 ;
 STR R3,[%y0] |              |              |                 ;
Observed
    0:R2=1; 2:R0=4; 3:R0=2; 3:R2=1; y=4;
and 0:R2=1; 2:R0=4; 3:R0=3; 3:R2=1; y=4;
and 0:R2=1; 2:R0=4; 3:R0=4; 3:R2=1; y=4;
