Test MOREDETOUR0456

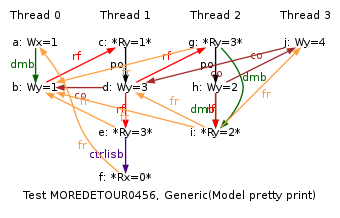

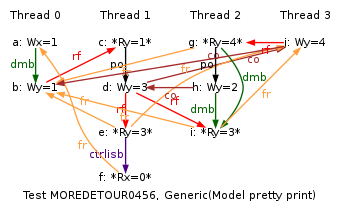

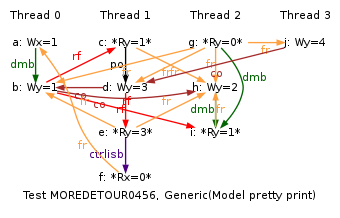

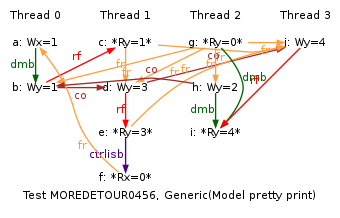

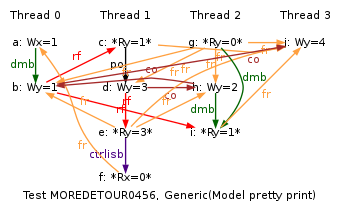

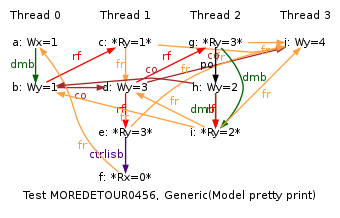

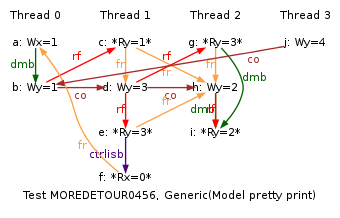

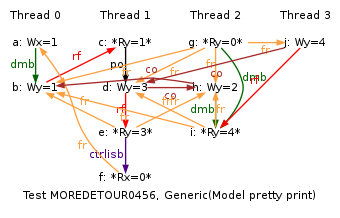

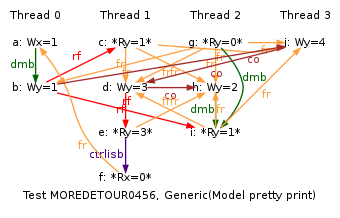

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=0 ; 2:R2=1"

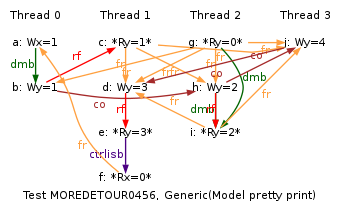

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=0 ; 2:R2=2"

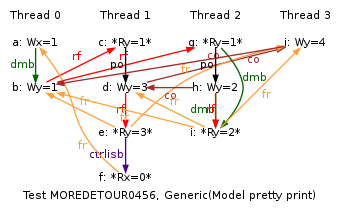

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=1 ; 2:R2=2"

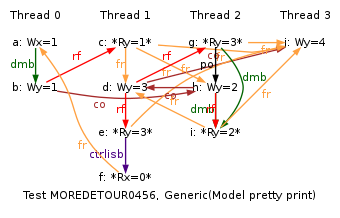

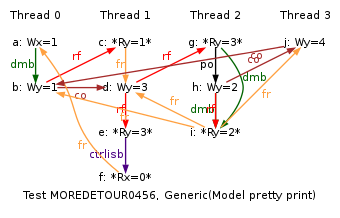

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=3 ; 2:R2=2"

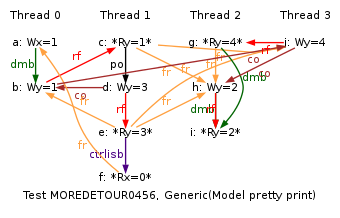

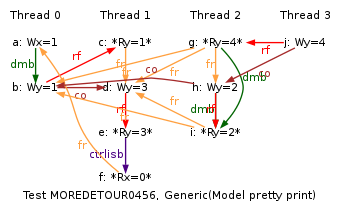

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=4 ; 2:R2=2"

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=4 ; 2:R2=3"

Executions for behaviour: "1:R0=1 ; 1:R2=3 ; 1:R3=0 ; 2:R0=0 ; 2:R2=4"

ARM MOREDETOUR0456
"DMBdWW Rfe DetourRW DetourW DpCtrlIsbdR Fre"
Cycle=Rfe DetourRW DetourW DpCtrlIsbdR Fre DMBdWW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Rf Fr
Orig=DMBdWW Rfe DetourRW DetourW DpCtrlIsbdR Fre
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%y2=y;
%y3=y;
}
 P0           | P1           | P2           | P3           ;
 MOV R0,#1    | LDR R0,[%y1] | LDR R0,[%y2] | MOV R0,#4    ;
 STR R0,[%x0] | MOV R1,#3    | MOV R1,#2    | STR R0,[%y3] ;
 DMB          | STR R1,[%y1] | STR R1,[%y2] |              ;
 MOV R1,#1    | LDR R2,[%y1] | DMB          |              ;
 STR R1,[%y0] | CMP R2,R2    | LDR R2,[%y2] |              ;
              | BNE LC00     |              |              ;
              | LC00:        |              |              ;
              | ISB          |              |              ;
              | LDR R3,[%x1] |              |              ;
Observed
    1:R0=1; 1:R2=3; 1:R3=0; 2:R0=0; 2:R2=1;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=0; 2:R2=2;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=1; 2:R2=2;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=3; 2:R2=2;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=4; 2:R2=2;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=4; 2:R2=3;
and 1:R0=1; 1:R2=3; 1:R3=0; 2:R0=0; 2:R2=4;
